In response to the special environment of Jamaica's narrow mountain roads and port terminals, the gooseneck and lowboy truck trailer main body adopt a quick-release hydraulic system, allowing a single operator to complete separation and docking within 10 minutes. The gooseneck can be detached for direct parking and loading/unloading in mountain farms, and can quickly switch tractors for batch transfer in port terminals.
Lowboy Truck Trailer for Sale in Jamaica
Lowboy Truck Trailer for Sale in Jamaica
Lowboy Truck Trailer for Sale in Jamaica
Lowboy Truck Trailer for Sale in Jamaica
Lowboy Truck Trailer for Sale in Jamaica
Dimension: 17900mmx3000mmx2500mm
Loading capacity(T): 100 ton

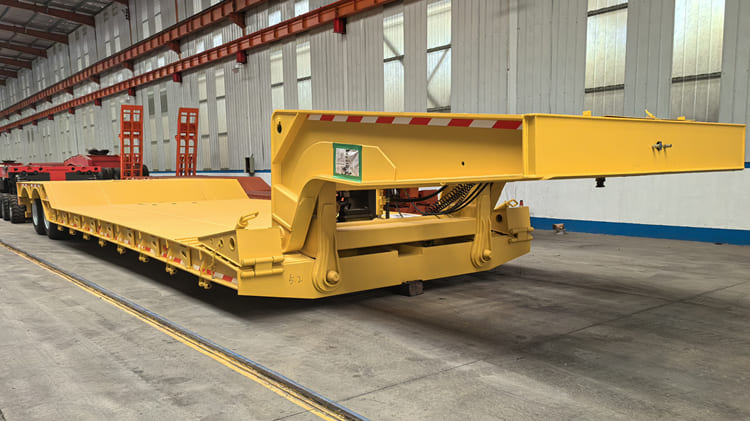

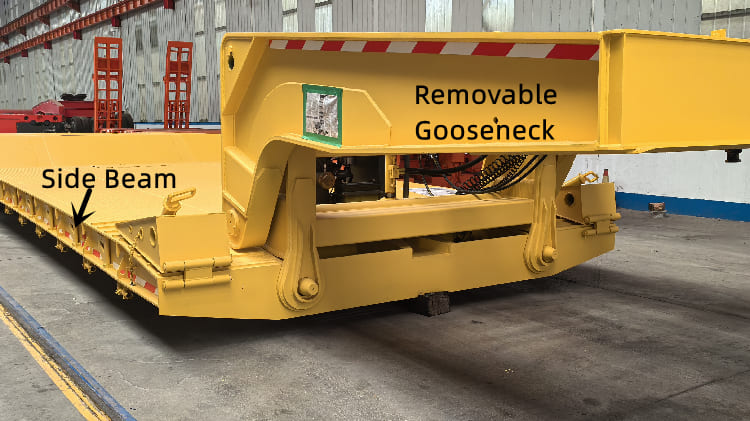

Goose neck: Removable gooseneck
Axle:2 line 4 axle, TITAN Brand

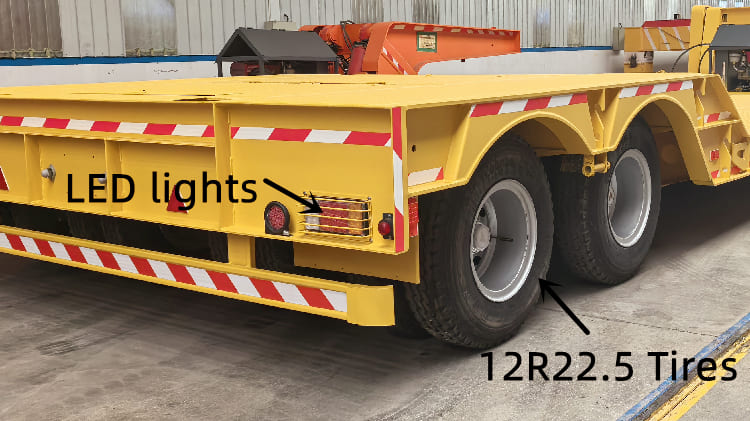

Tire: 16 units, 12R22.5
Suspension: Mechanical suspension

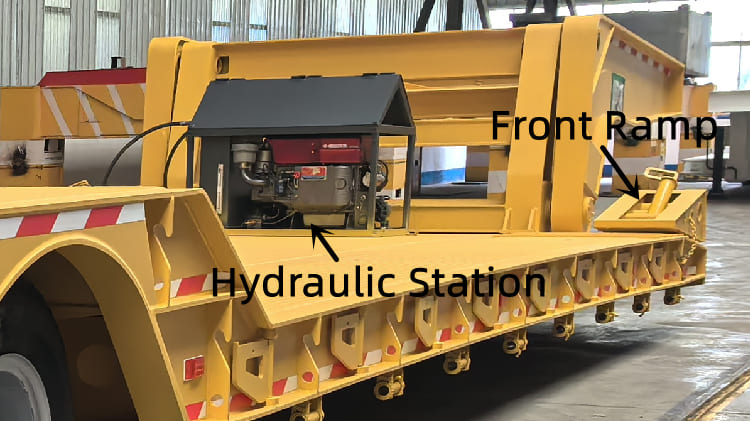

Hydraulic cylinder: 12KW diesel engine with hydraulic station
Kingpin: JOST brand 2.0 or 3.5 inch
Valve: WABCO valve
Light: LED light
The lowboy trailer for sale gooseneck components adopt an independent lubrication system, eliminating the need to disassemble the entire lowboy truck trailer for daily maintenance and reducing maintenance frequency in tropical environments.
The lowboy truck trailer for sale body is welded with low-carbon alloy steel, with a yield strength of 890MPa, increasing the load-bearing capacity by 50% compared to ordinary models. Key part reinforcement designs include:The lowboy truck trailer frame surface is sprayed with three layers of fluorocarbon coating, combined with galvanized connectors, passing 5000-hour salt spray testing to resist coastal high-humidity salt erosion.
In terms of anti-corrosion treatment, the lowboy truck trailer frame surface is not only sprayed with multiple layers of special coatings, but also added with anti-salt spray factors in the coatings. Combined with fully galvanized connectors, lowboy trailer for sale forms multiple anti-corrosion barriers, which can effectively resist the long-term erosion of high-humidity salt in coastal areas and perfectly adapt to Jamaica's marine climate.
The box-section longitudinal beam of the lowboy truck trailer is designed through computer simulation optimization, with a streamlined cross-sectional shape, which not only enhances structural stability but also reduces air resistance during driving. The longitudinal beams and crossbeams adopt an integral through welding process to form a solid space frame structure with excellent torsional performance. Even under complex road conditions such as sharp turns on mountain roads and uneven rural roads, the body can remain stable.
The side of the body adopts a reinforced guardrail design. The spacing between the guardrail columns is scientifically calculated, which can not only ensure the convenience of loading and unloading goods but also provide sufficient lateral support to prevent goods from shifting when turning or braking suddenly.
The bottom plate is made of anti-skid pattern steel plates, and the joints between the steel plates are fully welded, which not only enhances the bearing capacity of the bottom plate but also effectively prevents goods from slipping during transportation. At the same time, there are multiple transverse reinforcing ribs under the bottom plate to further disperse the weight of the goods and avoid deformation caused by excessive local stress.
Box-Section Longitudinal Beam: The optimized closed-section structure through finite element analysis increases torsional performance by 40%, adapting to sharp turns on mountain roads.
Hydraulic Balance Device: The lowboy trailer for sale axle is equipped with a lateral stability cylinder, which can automatically compensate for the height difference when a single wheel is suspended, ensuring that the goods always remain in a horizontal transportation state, reducing dump damage to agricultural products and precision equipment during transportation, and ensuring the integrity of the goods.

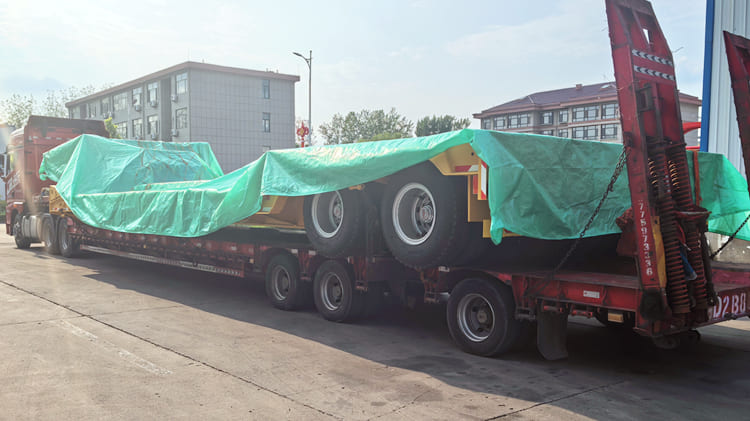

In view of Jamaica's maritime transportation environment, TITAN implement a comprehensive protection process. Lowboy truck trailer metal connectors are subjected to anti-corrosion treatment, and key welds are painted with special coatings to improve resistance to seawater corrosion. Maritime shipping packaging adopts a double-layer protection structure, with a solid frame on the outer layer and a waterproof membrane and moisture-proof desiccant on the inner layer.
